Single Phase Type 1 32A Portable EVSE Charger With Nema plug

  • Single Phase Type 2 32A Portable EVSE Charger With CEE Plug

  • Hpconnect

Product Description

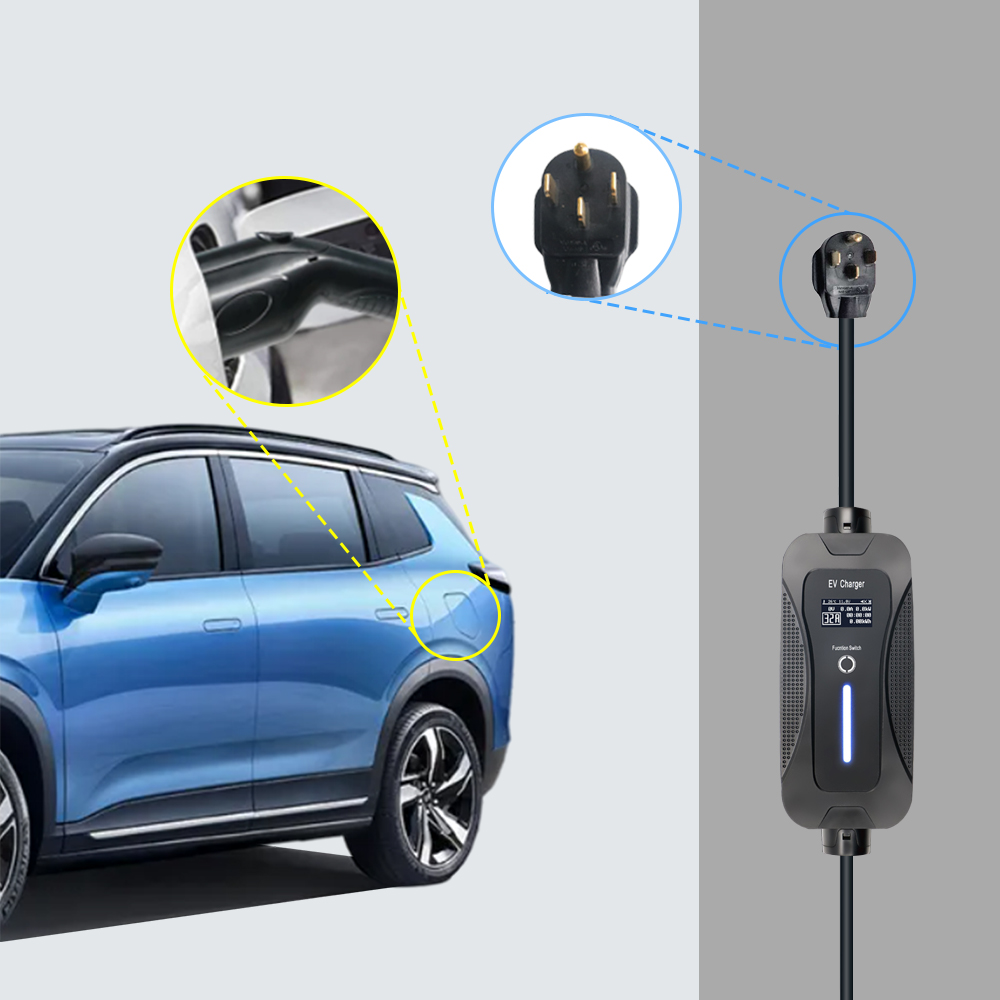

Type 1 32A EVSE Portable EV Charger With NEMA Plug LCD 32A Charging Cables

The Portable EV Charger - Type1 - 5m - 10A / 16A / 20A / 24A / 32A single-phase is a portable charger - mobile charger that allows you to charge your electric or hybrid vehicle in mode 2 on any Nema 32A 230V at a load power of 7kW (32A single phase).

The mobile terminal allows you to recharge on all Nema 32A 230V sockets in complete safety. The charging intensity is adjustable by pressing the selection button at 10A / 16A / 20A / 24A / 32A. Simply connect it to the CEE 32A socket side and select the desired amperage. Then connect car side (type 1), and charging starts automatically.

The cable is made of TPU, a flexible and lightweight new generation premium material , which facilitates daily handling.

The type 1 socket meets UL94V-0 certification , guaranteeing safety against overheating.

Portable EV Charger

Portable EV Charger

Portable EV Charger

1Portable EV Charger


Product Name Single Phase Type 1 32A Portable EVSE Charger With NEMA Plug
Length 5m or customized length
Rated current 2kW (at 10A) or 7kW (at 32A);  10A, 16A, 20A, 24A or 32A
Operation Volatge 230V
Insulation resistance more than 500M Ohm(DC500V)
Contact resistance 0.5m Ohm max
Terminal temperature rise less than 50K
Withstand voltage 1500V
Mechanical life no-load plug in/out  more than 10000 times
Coupled insertion force 45N~100N
Impact of external force can afford 1M drop
Operating Temperature -30~+50ºC
Case material thermoplastic, flame retardant grade UL94 V-0
Termminal Copper alloy , silver plating
Control   box function leakage protection;
overvoltage under-voltage protection;
over load protection;
lightning protection;
ground protection;
over-temperature protection;
Features Easy: Charge at home, at work, or anywhere with the   socket. No installation is required, just an intuitive pairing process. Plug   and charge, wherever you are;
Safe: Protecting Earthing detection;
Designed for electric cars using the SAEJ1772 standard, this car charger offers a maximum charging speed of 3.6 kW per hour. The precision   engineering of the internal circuit board allows automatic detection and   correction of any problems during charging, including any issues with   minimal, unstable, or excessive voltage, current, frequency, earth leakage,   and temperature even during lightning and electrical storms.

Portable EV Charger


           1.Lightning protection

           2.Over-voltage protection

           3.Leakage protection

           4.Over-load protection

           5.Waterproof IP66


Q1: Rated current

A: Fixed current : 16A 32A

    Adjustable current : 16A: 8A/10A/13A/16A

    32A: 16A/26A/32A

Q2: Earth setting

A: We have 2 options for your reference. YES grounding means earthing is on. No grounding means earthing is off.

Q3: Delivery time

A: Sample time is within 3 days.

    Bulk order is 7-10 working days.

Q4: Warranty

A: 1 year.

Q5. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.

Q6. How to proceed an order for EV charging cables?

A: 1) let us know your requirements or application.

2) We quote according to your requirements or our suggestions.

3) Customer confirms the samples and places deposit for formal order.

4) We arrange the production.

Q7. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production.

Q8: How to deal with the faulty?

A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.

2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
