3.5kw 7kw 16A 32A Sae J 1772 T1-T2 CE EV Charger Cable

Availability:
Quantity:

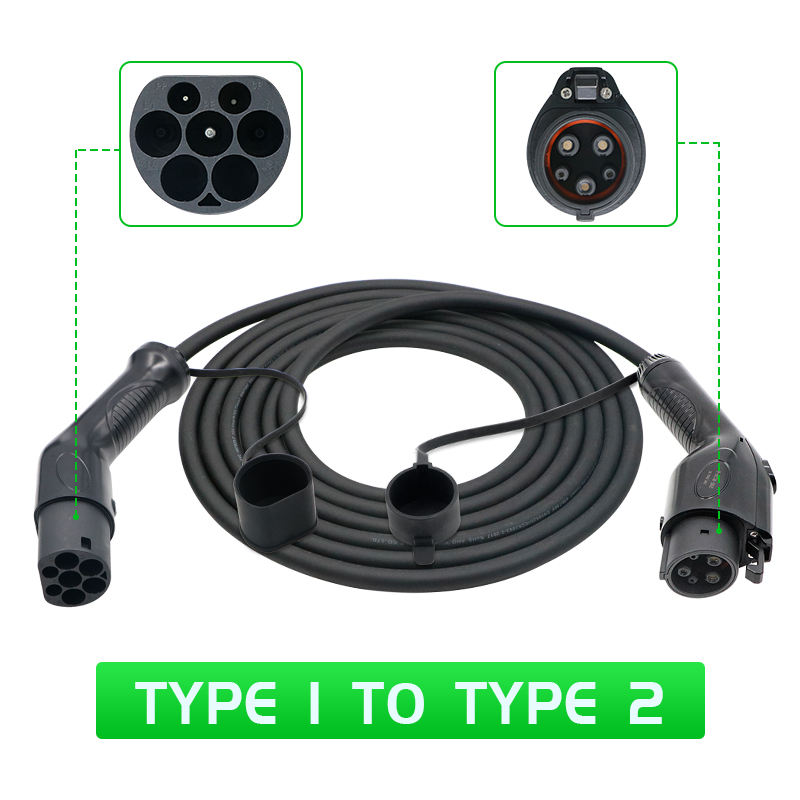

  • Type 1 to Type 2 EV charging cable

  • Hpconnect


Product Description


The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in dirty or rainy situations.You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV. Practical and convenient in use. Such a practical tool you will need it.


Introducing the SAE J1772 T1-T2 CE EV Charger Cable - a high-quality and reliable charging solution for your electric vehicle. With compatibility for 3.5kw, 7kw, 16A, and 32A charging capacities, this cable is designed to meet your charging needs.


This EV charger cable is manufactured by Hpconnect, a trusted brand from China, known for its exceptional products. It conforms to the SAE J1772 standard, ensuring seamless compatibility with Type 1 and Type 2 electric vehicles and Type 1 and Type 2 hybrid vehicles.


With an IP65 water and dust resistance rating, this cable remains functional even in adverse weather conditions. You can confidently charge your vehicle outdoors without worrying about the cable's performance.


The IEC-SAE Model 3 Charger boasts a mechanical life of more than 10,000 plug-in/out cycles, ensuring long-lasting durability. It operates at an optimal temperature range of -30°C to +50°C, making it suitable for various climates.


ev charger cable


ev charger cable


ev charger cable


ev charger cable


Specification



ev charger cable

     Characteristic:

           1.Lightning protection

           2.Over-voltage protection

           3.Leakage protection

           4.Over-load protection

           5.Waterproof IP65(operating state)







ev charger cableev charger cable



Product  Name IEC-SAE  Model 3 Charger
Length 5m or customized length
Rated current 16A/32A/40A
Operation Volatge 250V
Insulation resistance more than 500M Ohm(DC500V)
Contact resistance 0.5m Ohm max
Terminal temperature rise less than 50K
Withstand voltage 2000V
Mechanical life no-load plug in/out  more than 10000 times
Coupled insertion force 45N~100N
Impact of external force can afford 1M drop
Operating Temperature -30~+50ºC
Case material thermoplastic, flame retardant grade UL94 V-0
Termminal Copper alloy , silver plating
Features Easy: Charge at home, at work, or anywhere with the  socket. No installation is required, just an intuitive pairing process. Plug  and charge, wherever you are;
Safe: Protecting Earthing detection;
Designed for electric cars using the IEC 62196  standard,  this car charger offers a maximum charging speed of 3.6 kW per hour. The  precision engineering of the internal circuit board allows automatic  detection and correction of any problems during charging, including any  issues with minimal, unstable, or excessive voltage, current, frequency,  earth leakage, and temperature even during lightning and electrical storms.



FAQ


Q1: Rated current

A: 16A/32A




Q2: Maximum charging power

A: 3.5KW/7KW


Q3: Delivery time

A: Sample time is within 3 days.

    Bulk order is 7-10 working days.


Q4: Warranty

A: 1 year.
